Capacitive fingerprint reader with UART & USB Output

USD
PKR

Flash Sale end in:

00
:
00
:
00
:
00
₨17,474

1 in stock

Add to Wishlist
Contact For Bulk Orders
  Delivery & Return

Delivery & Return Rules

Same-Day Delivery for ISB/RWP

Policy: Orders placed before 3:00 PM for delivery within Islamabad/Rawalpindi will be delivered the same day. Orders placed after this time will be delivered the next business day.

Quick Returns

Explanation: We aim for a smooth return experience.

Policy: Returned items will be processed within 3–5 business days of receiving the item, and you will be notified once the return is approved.

Exchange for Misquoted Items

Explanation: We take full responsibility for product listing accuracy.
Policy: If the item you received is significantly different from its description or image, you can request an exchange.

Wrong or Damaged Products

Explanation: We ensure product quality and accurate shipping.
Policy: If you receive an incorrect product or one that is damaged during shipment, you are eligible for a free exchange.

Complete Package Assurance

Explanation: Your order should arrive complete and in perfect form.
Policy: If any accessory, component, or part is missing from the package, we will ship the missing parts after confirmation.

Video Proof of the Items

Explanation: Helps verify the condition of the product upon delivery.
Policy:  An unboxing video is mandatory at the time of opening the package. The video must clearly show the sealed package being opened, the product, and all included components. This is required for any claims related to:

  • Missing items
  • Damaged products
  • Wrong deliveries

Without this video proof, we will not be able to process returns or exchanges.

No Warranty for Electronic Products

Explanation: Most electronic items are sold as-is and cannot be returned once used.
Policy: Electronic products are not covered under warranty. We recommend testing the item as soon as you receive it. Exchanges are only allowed if the product is damaged on arrival or incorrectly delivered.

Return Request Timing

Explanation: We operate within a strict return window.
Policy: All return/exchange requests must be submitted within 10 days (local orders) and 20 days (bulk orders) from the invoice date.

Online Return Requests Only

Explanation: Streamlined and trackable process.
Policy: All return and exchange requests must be raised through our official website.

Proof of Purchase Required

Explanation: Ensures authenticity of your claim.
Policy: A copy of your invoice or order confirmation is required for any return, exchange, or or claim.

  2 - 5 DAY DELIVERY  Feb 04 Feb 08
Compare
SKU: 7000000000108
Categories:Boards & Modules, Sensors
Tags:Capacitive fingerprint reader, Capacitive fingerprint reader USB Output, fingerprint reader with UART, High Precision Capacitive Fingerprint Reader, Waveshare
Brand: Waveshare
Share:
Guaranteed safe & secure checkout

TECHNICAL DOCUMENTATION FILES

DOWNLOAD
  • Download All
  • Manual
  • Application
  • PCB Altium
Description
Additional information
Reviews (0)

Description

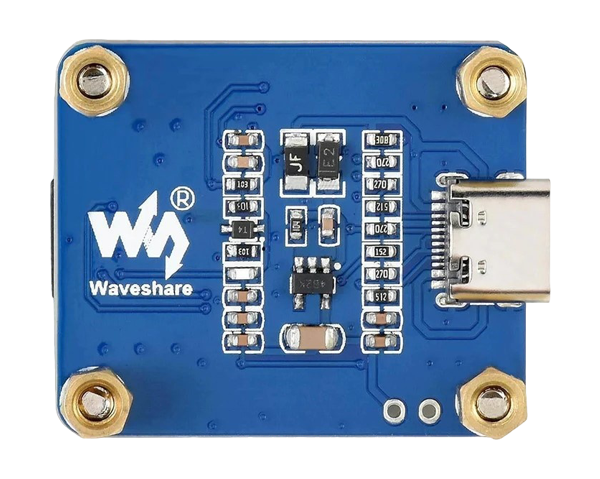

The Capacitive Fingerprint Reader (B) is a fast and stable capacitive fingerprint module designed for secondary development, ideal for integrating into your own application with the dual-port (UART or USB-C) functionality.

By incorporating a high-performance Cortex core processor, high-security commercial fingerprint algorithm and an advanced semiconductor fingerprint sensor, this module is designed as an intelligent integration module with functions including fingerprint enrolling, image processing, template generating and storing and fingerprint matching/searching.

Online development resources provide examples for the Raspberry Pi and Arduino alongside other useful information.

Features

  • Easy to use with simple commands – no requirement for knowledge of fingerprint technology or module structure/calculation
  • Commercial fingerprinting algorithm, stable performance, fast identification
  • Sensitive detection, just touch the collecting window lightly
  • Input/output fingerprint images, fingerprint feature file and other fingerprinting actions
  • Dual communication – UART or USB-C
  • Online development resources (related command documents, tools, and examples for Raspberry Pi/Arduino)

Specifications

Sensor Semiconductor (capacitive)
Module dimension 34 × 28.5mm
Sensor dimension 33.4 × 20.4mm
Image DPI 508
Image resolution 208 × 288
Greyscale 256 (8-bit)
Sensing area 14.6 × 10.6mm
Fingerprint capacity 3000
Security level 1-5 configurable, 3 by default
The higher value, the lower FAR (False Acceptance Rate), yet the higher FRR (False Rejection Rate)
Encryption key 64-bit encryption
Image collecting rate 20fps
Matching time 0.5s
Dynamic current <40mA
Operating voltage 3.3-5V
Communication port UART or USB-C
ESD SD IEC 61000-4-2 LEVEL 4 positive/negative 15KV air discharge
Baudrate configurable: 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600bps
115200bps by default

Package Includes

  • 1 x Capacitive fingerprint reader with UART & USB Output
  • 1 x 6-Pin Wire
Weight 27 g
Manufacturer

Waveshare

Product number

FPR-CAP
