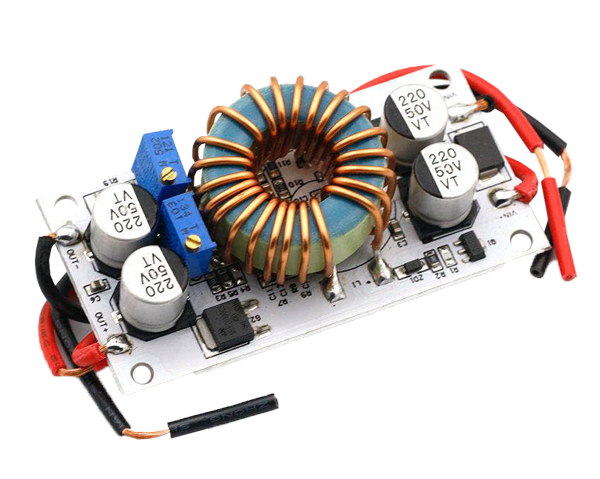

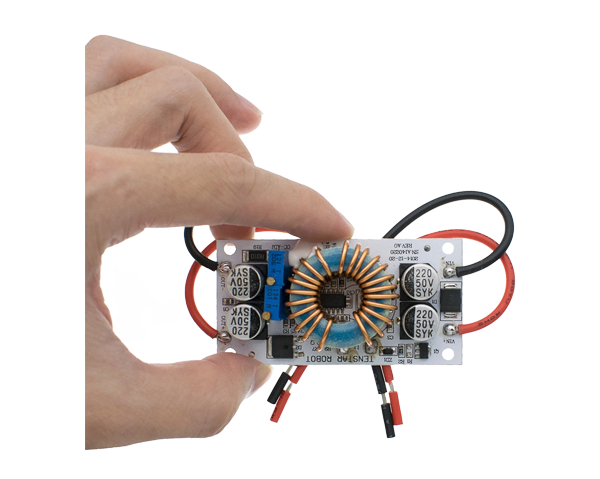

DC DC Constant Current Boost Step up converter 250W 10A
20 in stock (can be backordered)
Delivery & Return Rules
Same-Day Delivery for ISB/RWP
Policy: Orders placed before 3:00 PM for delivery within Islamabad/Rawalpindi will be delivered the same day. Orders placed after this time will be delivered the next business day.
Quick Returns
Explanation: We aim for a smooth return experience.
Policy: Returned items will be processed within 3–5 business days of receiving the item, and you will be notified once the return is approved.
Exchange for Misquoted Items
Explanation: We take full responsibility for product listing accuracy.
Policy: If the item you received is significantly different from its description or image, you can request an exchange.
Wrong or Damaged Products
Explanation: We ensure product quality and accurate shipping.
Policy: If you receive an incorrect product or one that is damaged during shipment, you are eligible for a free exchange.
Complete Package Assurance
Explanation: Your order should arrive complete and in perfect form.
Policy: If any accessory, component, or part is missing from the package, we will ship the missing parts after confirmation.
Video Proof of the Items
Explanation: Helps verify the condition of the product upon delivery.
Policy: An unboxing video is mandatory at the time of opening the package. The video must clearly show the sealed package being opened, the product, and all included components. This is required for any claims related to:
- Missing items
- Damaged products
- Wrong deliveries
Without this video proof, we will not be able to process returns or exchanges.
No Warranty for Electronic Products
Explanation: Most electronic items are sold as-is and cannot be returned once used.
Policy: Electronic products are not covered under warranty. We recommend testing the item as soon as you receive it. Exchanges are only allowed if the product is damaged on arrival or incorrectly delivered.
Return Request Timing
Explanation: We operate within a strict return window.
Policy: All return/exchange requests must be submitted within 10 days (local orders) and 20 days (bulk orders) from the invoice date.
Online Return Requests Only
Explanation: Streamlined and trackable process.
Policy: All return and exchange requests must be raised through our official website.
Proof of Purchase Required
Explanation: Ensures authenticity of your claim.
Policy: A copy of your invoice or order confirmation is required for any return, exchange, or or claim.
Description
- Module properties: non-isolated step-up module (BOOST)
- Input voltage: DC 8.5V-48V
- Input current: 10A (MAX) exceeds 8A please enhance heat dissipation
- Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
- Output voltage: 10-50V continuously adjustable
- Constant range: 0.2-8A
- Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
- Operating frequency: 150KHz
- Conversion efficiency: up to 96%
- Overcurrent protection: Yes
- Input reverse polarity protection: Yes
- Installation: 4 nos. 3mm screw holes
- Connection method: Connection Output
- Module size: Length 70mm width 36mm height 13mm
- Single module: 65 g
Specifications
- Input voltage: DC 10-60V.
- Input current: 10A max.
- Static working current: 10 mA.
- Output voltage: DC 12-60V infinitely adjustable.
- Output Current: Max 10A (Reduces when the voltage difference between input and output rises, please improve the heat dissipation when you are above 10A)
- Constant voltage range: DC 12-60V.
- Constant current range: 0.2-10A.
- Output: Input Voltage x 10A
- Operating frequency: 150 kHz.
- Conversion efficiency: 92% -96%
- Reverse Connection Protection: No
- Operating temperature: -40 ~ 85
Applications
- DIY power supply, 12V input can give adjustable output of 12-50V.
- The power supply for your electronic device, to provide voltage according to your system.
- Portable car power supply for your laptop, PDA or a variety of digital products supply.
- DIY mobile notebook power supply
- Solar panel regulator.
- To charge battery, rechargeable lithium batteries.
- Driving high-power LED lights.
Package Includes
- 1 x DC DC Constant Current Boost Step up converter 250W 10A
| Weight | 61 g |
|---|---|
| Dimensions | 85 × 52 × 21 mm |
| Origin | China |
