LCR Meter UNI-T UT622A
- MAX. TEST FREQUENCY: 10kHz
- ACCURACY: 0.1%
- DISPLAY COUNT : 99999
- Rise time: ≤14ns
- MAX. TEST RATE: 20 times/s
- DCR: No
- CONNECTIVITY: Mini-USB
- DISPLAY: 2.8” TFT LCD
2 in stock (can be backordered)
Delivery & Return Rules
Same-Day Delivery for ISB/RWP
Policy: Orders placed before 3:00 PM for delivery within Islamabad/Rawalpindi will be delivered the same day. Orders placed after this time will be delivered the next business day.
Quick Returns
Explanation: We aim for a smooth return experience.
Policy: Returned items will be processed within 3–5 business days of receiving the item, and you will be notified once the return is approved.
Exchange for Misquoted Items
Explanation: We take full responsibility for product listing accuracy.
Policy: If the item you received is significantly different from its description or image, you can request an exchange.
Wrong or Damaged Products
Explanation: We ensure product quality and accurate shipping.
Policy: If you receive an incorrect product or one that is damaged during shipment, you are eligible for a free exchange.
Complete Package Assurance
Explanation: Your order should arrive complete and in perfect form.
Policy: If any accessory, component, or part is missing from the package, we will ship the missing parts after confirmation.
Video Proof of the Items
Explanation: Helps verify the condition of the product upon delivery.
Policy: An unboxing video is mandatory at the time of opening the package. The video must clearly show the sealed package being opened, the product, and all included components. This is required for any claims related to:
- Missing items
- Damaged products
- Wrong deliveries
Without this video proof, we will not be able to process returns or exchanges.
No Warranty for Electronic Products
Explanation: Most electronic items are sold as-is and cannot be returned once used.
Policy: Electronic products are not covered under warranty. We recommend testing the item as soon as you receive it. Exchanges are only allowed if the product is damaged on arrival or incorrectly delivered.
Return Request Timing
Explanation: We operate within a strict return window.
Policy: All return/exchange requests must be submitted within 10 days (local orders) and 20 days (bulk orders) from the invoice date.
Online Return Requests Only
Explanation: Streamlined and trackable process.
Policy: All return and exchange requests must be raised through our official website.
Proof of Purchase Required
Explanation: Ensures authenticity of your claim.
Policy: A copy of your invoice or order confirmation is required for any return, exchange, or or claim.
TECHNICAL DOCUMENTATION FILES
Description
The UT622 series offers high performance, handheld component measurement devices (LCR meter) that measure inductances, resistances and capacitors, as well as their secondary parameters D (dissipation factor), Q (quality factor), Θ (phase angle in degrees), Θ (phase angle in radians) and ESR (series or parallel equivalent resistance) can be measured.
Features
- Manual LCR meter for primary and secondary parameters of components.
- Automatic component identification
- measurement with AC voltage 100, 120, 1000 or 10000 Hz.
- large backlit TFT LCD display with 10 brightness levels
- the display range is maximum 99999 meters
- maximum accuracy 0.1
- possibility to select components according to given tolerances
- selectable amplitude measuring voltage 0.1 Vrms, 0.3 Vrms, 1.0 Vrms
- equivalent mode selection (for Z <100 Ω serial, for Z < 10k Ω parallel).

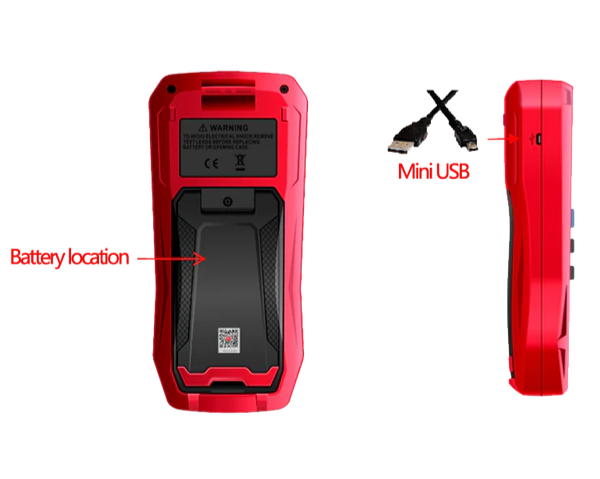

- Mini-USB interface for data transfer to PC / charging the device.
- built-in high capacity rechargeable battery: 1800 mAh
- Power supply: Rechargeable battery or AC adapter
- Running time with one battery charge: approx. 8 hours
- functions in recording mode and data statistics: AVG (average), MAX, MIN
- Automatic power off: yes after 5, 15, 30, 60 minutes
- Audible and visual alarm to compare tolerance results
- Reset open circuit or short circuit tester: yes
- Tolerance value setting from nominal value: 1 % to 20 %, default 5 %.
- Component counting: all, compliant, non-compliant
Package includes
- 1 x LCR Meter
- 1 x LCR short-circuit calibration sheet
- 1 x Capacitor clamp short test lead
- 1 x Mini USB cable
| Weight | 563 g |
|---|---|
| Dimensions | 93 × 192 × 44 mm |
| Manufacturer | UNI-T |
